Garage storage rack

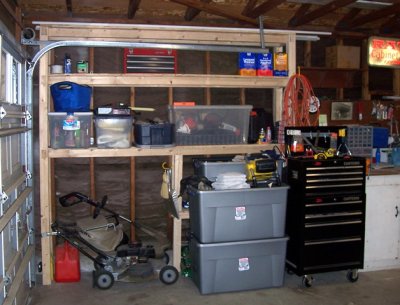

Last weekend I built a heavy duty storage rack for my garage. It's 9' long, 8' tall, and 16" deep.



congrats?

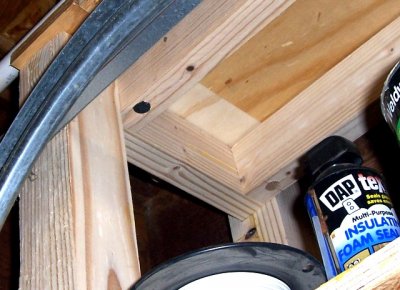

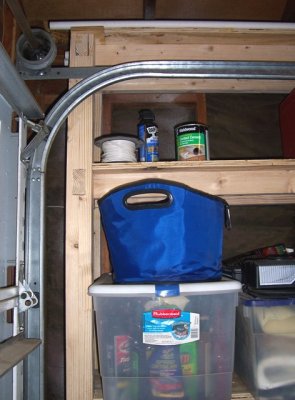

I used joinery that was a little complex, but strong as hell for 2x4s. For the end pieces, I shaved 1/4" off each end to square it up, then glued and screwed two together to make a 3x3 post.

Where I wanted to have a shelf, I cut 1 1/2" x 3" holes in the post so I could insert and glue the horizontal 2x4s inside the support beams.

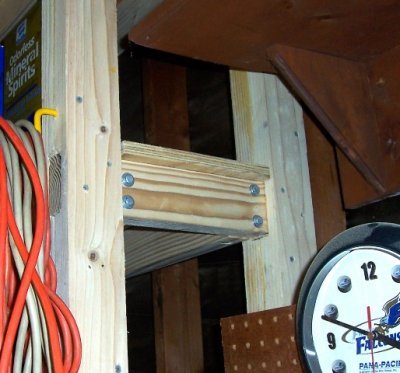

The problem with 2x4s is that they're soft, so screws don't hold real well under strain. So I learned a neat technique for using screws or lag bolts into the end of 2x4s. You drill a vertical hole about 1" in from the end. Then you put a 3" piece of round hardwood (like oak) in the hole.

Now you can drive long screws or lag bolts into the end of the 2x4, and it will anchor in the hardwood, making it a very solid joint.



I learned this construction technique from plans I bought to build a router table, but it works on a wide variety of applications. It's not tough, and you really don't need much in the way of special tools. A circular saw and a drill would do it. Best of all, it's a good way to build a strong structure with cheap materials.



ok



Very nice. I've been wanting to do something of the sort ni the garage for some time now. I'll keep that anchor tip in mind.



i like it hb.



Oh gosh, everyone wants to be as organized as you.
I live with my mess.
Looks great though!



Try it -- it works. And like I said, it's cheap and simple.
